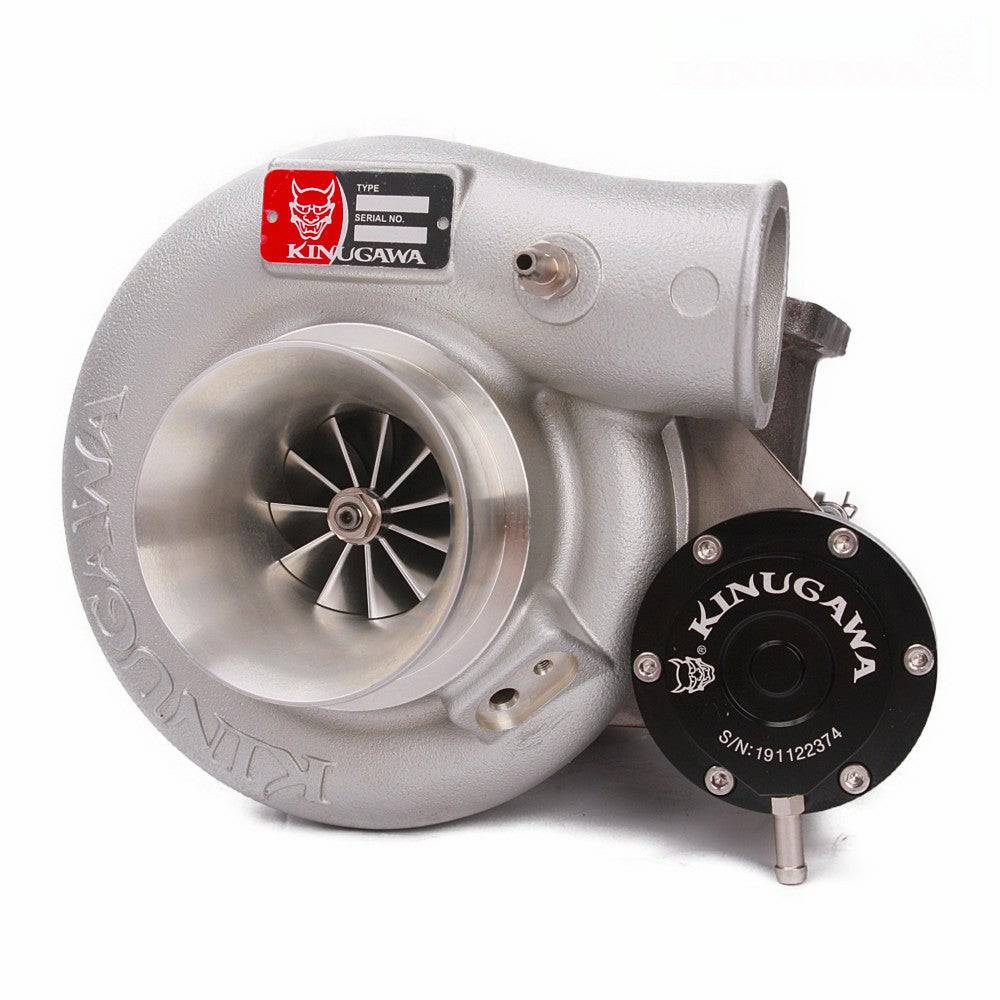

Kinugawa Turbo Ball Bearing 3" TF06-18K for Nissan RB20DET RB25DET R31 R32 R33 R34
Application
- For the Nissan RB20DET / RB25DET Skyline
- Universal application: 2000 ~ 3500cc
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TF06-18K
Wheels Spec
- Compressor wheel: 55.1 / 75 mm (7+7 Point Milling / Third-Order Surface)
This high-performance 75mm compressor blends quick response and top-end power with OE reliability. The billet 18K (aka 18KX) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades for a max flow rate of 54lb/min. This turbo is capable of producing 500+hp with a built engine and supporting modifications.
| Free Surface | Ruled Surface | |
| Process | Point Milling | Flank Milling |
| Machining Time | Slow 120 mins.each | Quick 15 mins.each |
| Characters |
1. Free Surface can be only produced by Point Milling |
1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor |
- Turbine wheel: 54 / 61.5 mm (9 blades STS. Click here to learn more about STS technology.↗)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 80.5mm / 3.15"
- Outlet: 51mm / 2"
- Nozzle area: AR.60
- Inlet: 80.5mm / 3.15"
- Outlet: 51mm / 2"
Turbine Housing
- Nozzle area: 8cm / AR.57; 10cm / AR.73 (optional)
- Inlet: T3
- Outlet: 6 bolt RB20DET / RB25DET type
- Wastegate: internal gated
- Inlet: T3
- Outlet: 6 bolt RB20DET / RB25DET type
- Wastegate: internal gated
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The set includes
- 1 x Turbocharger
- 1 x oil supply set
- 1 x drain pipe kit
- 2 x coolant supply line
- 2 x Turbine gasket (inlet + outlet)
- 6 x starting kit
- 1 x Balance Report with Anti-counterfeit Tag↗
- 1 x drain pipe kit
- 2 x coolant supply line
- 2 x Turbine gasket (inlet + outlet)
- 6 x starting kit
- 1 x Balance Report with Anti-counterfeit Tag↗
[Install Kit Instruction]
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
Application
- For the Nissan RB20DET / RB25DET Skyline
- Universal application: 2000 ~ 3500cc
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TF06-18K
Wheels Spec
- Compressor wheel: 55.1 / 75 mm (7+7 Point Milling / Third-Order Surface)
This high-performance 75mm compressor blends quick response and top-end power with OE reliability. The billet 18K (aka 18KX) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades for a max flow rate of 54lb/min. This turbo is capable of producing 500+hp with a built engine and supporting modifications.
| Free Surface | Ruled Surface | |
| Process | Point Milling | Flank Milling |
| Machining Time | Slow 120 mins.each | Quick 15 mins.each |
| Characters |
1. Free Surface can be only produced by Point Milling |
1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor |
- Turbine wheel: 54 / 61.5 mm (9 blades STS. Click here to learn more about STS technology.↗)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 80.5mm / 3.15"
- Outlet: 51mm / 2"
- Nozzle area: AR.60
- Inlet: 80.5mm / 3.15"
- Outlet: 51mm / 2"
Turbine Housing
- Nozzle area: 8cm / AR.57; 10cm / AR.73 (optional)
- Inlet: T3
- Outlet: 6 bolt RB20DET / RB25DET type
- Wastegate: internal gated
- Inlet: T3
- Outlet: 6 bolt RB20DET / RB25DET type
- Wastegate: internal gated
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The set includes
- 1 x Turbocharger
- 1 x oil supply set
- 1 x drain pipe kit
- 2 x coolant supply line
- 2 x Turbine gasket (inlet + outlet)
- 6 x starting kit
- 1 x Balance Report with Anti-counterfeit Tag↗
- 1 x drain pipe kit
- 2 x coolant supply line
- 2 x Turbine gasket (inlet + outlet)
- 6 x starting kit
- 1 x Balance Report with Anti-counterfeit Tag↗
[Install Kit Instruction]
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
